Description
- Hign-concerned Chemical: None
- AI Functions: Motion Detection
- Power Mode: Mains Electricity
- Megapixels: 5MP
- TF Card: None
- Power Supply: Normal
- Internal Storage: None
- Installation: Embedded
- Color: black
- is_customized: Yes
- Audio Output: None
- Minimum Illumination(Lux): 0.01lux
- Viewing Angle : 90°
- Video Compression Format: MJPEG
- IR Distance(m): /
- Dimensions (L x W x D)(mm): /
- Power Supply(V): DC5
- Power Consumption(W): 3.3-5v
- Supported Mobile Systems: Android
- Sensor Brand: Sony
- Sensor: CCD
- Model Number: GS-15C5M-AF/GS-15C8M-AF/GS-14MTC12M
- Supported Operating Systems: Windows 98,Windows XP,Windows Vista,Windows 7,Mac OS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003
- Lens (mm): 3.6mm
- Connectivity: USB
- High Definition: 8.0 Megapixels
- Style: Mini Camera
- Brand Name: GENIUSPY
- Origin: Mainland China
- Certification: None
- Smart home platform: None
- Special Features: Vandal-proof
- Shell Material: Plastic
- item: Super Mini Usb Camera
- senor: 1/4″CMOS Progressive Scan 5MP/8mp
- lux: Color 0.1LuxF1.2; B/W 0.01 LuxF1.2
- lens: AUTO Focus lens
- system: android/windows/Linux/mac etc
- for: Color 0.1LuxF1.2; B/W 0.01 LuxF1.2
- app: USBCAMERA
- audio: support
- Resolution: 5mp/8mp
- Pixel: 2592*1944 30FPS/3264(H) X 2448(V) 800MP pixels
- keyword: USB Android External Camera
- SIZE: 15*15 Micro Usb Camera
- 12MP: camera board size 14*14mm
IMX179 Type-C AF AutoFocus Webcam 1080P High Speed UVC OTG 2592*1944 30FPS USB Camera Module 5MP 8MP 12MP Mini CCTV Surveillance
5MP is 30fps audio . 8MP is 15fps IMX179 senor ,12MP IS 30FPS Audio ,size 14*14mm module
4K 8MP IMX179 video recording effect
Note: the camera needs to keep a distance of more than 8CM from the object to be able to focus automatically. When the camera is working, it will emit heat. The highest temperature can reach 55 degrees, which is normal, please do not worry.
for more products infomation ,pls go to our store page !
if you have other requirement ,welcome contact with us free !

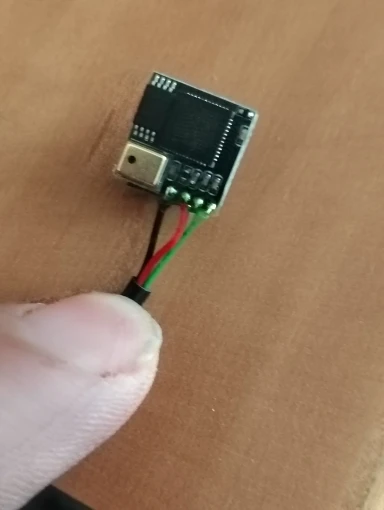

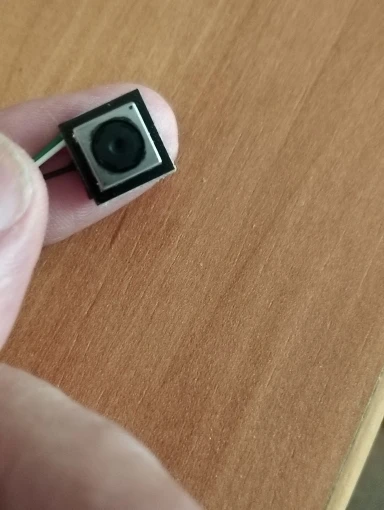

Camera Pictures: Size:15*15*13mm
Camera Module:
These interfaces are optional, please place orders which one you need:
5MP Video output
8MP Models Video Output
12mp Models Video Output
Surveillance Camera Full HD 1080P UVC OTG AF AutoFocus 500W USB Camera Module 2592*1944 30FPS High Speed 2MP CCTV Webcam
Our company has been persisting in the tenet of credibility based, customers supreme, and quality guaranteed, to provide the best services to you through our utmost efforts!
We promise: the same to you the quality our price is optimal, same price our quality is the most guarantee!
Factory direct sales of goods are definitely value for money!
Feature:
HD 1080P 5MP USB camera module
Synchronization technology
High speed USB 2.0 interface
High quality image
Low power consumption
Small outline for embedded application
UVC compliance for use in OS Windows,Linux,Android,Mac
Typical application
1: ATM,Kiosk,POS,TV box2: advertising cameras3: one camera4: Smart TV built-in camera
5: Construction Equipment6: Banking equipment7: body switch8: Scanner
9: a mobile terminal device10: Medical diagnostic image acquisition11: fingerprints, palm prints image acquisition
12:video door phone13:HD surveillance
Remarks:
1: Use the USB cable wire into the computer, notebooks and other USB interface will be able to use!
2: inserted as computers, laptops can not be used, indicating that there is no drive in accordance with the camera.
3: This product is equipped with a USB cable.
Typical application
1: ATM,Kiosk,POS,TV box 2: advertising cameras 3: one camera 4: Smart TV built-in camera
5: Construction Equipment 6: Banking equipment 7: body switch 8: Scanner
9: a mobile terminal device 10: Medical diagnostic image acquisition 11: fingerprints, palm prints image acquisition
12:video door phone 13:HD surveillance
This camera is a 5.0 megapixel size 2592*1944 pixel 1080P HD USB-2.0-free drive camera module, frame rate up to 15/30 frames. It can be used for one computer, advertising equipment, video doorbell, can meet the high demands of customers!
HD 5MP /8MP USB camera module
Synchronization technology
High speed USB 2.0 interface
High quality image
Low power consumption
Small outline for embedded application
UVC compliance for use in OS Windows,Linux,Android,Mac
1: ATM,Kiosk,POS,TV box 2: advertising cameras 3: one camera 4: Smart TV built-in camera
5: Construction Equipment 6: Banking equipment 7: body switch 8: Scanner
9: a mobile terminal device 10: Medical diagnostic image acquisition 11: fingerprints, palm prints image acquisition
12:video door phone 13:HD surveillance
1: Use the USB cable wire into the computer, notebooks and other USB interface will be able to use!
2: inserted as computers, laptops can not be used, indicating that there is no drive in accordance with the camera.
3: This product is equipped with a USB cable.
Size:1/4 inch
pixel size:1.4 µm x 1.4 µm
Maximum effective pixels: 2592(H)*1944(V)/1920 (H) *1080 (V)
Output image format: YUV2 (YUYV) / MJPEG
Frame rate:
2592*1944-MJPEG-30FPS YUY2-2FPS
2048*1536-MJPEG-30FPS YUY2-3FPS
1920*1080-MJPEG-30FPS YUY2-5FPS
1280*720- MJPEG-30FPS YUY2-10FPS
950*540- MJPEG-30FPS YUY2-
640*480- MJPEG-30FPS YUY2-30FPS
320*240- MJPEG-30FPS YUY2-
320*180- MJPEG-30FPS YUY2-30FPS
Signal to noise ratio: 36dB
Dynamic range: 72dB
image area:3673.6 µm x 2738.4 µm
Sensitivity: 690 mV/lux-sec
Minimum illumination: 0.01LUX
Shutter type: Electronic rolling Frame shutter/ exposure
Interface type: USB2.0 High Speed
Support free flooding protocol: USB Video Class (UVC)
Support OTG protocol: USB2.0 OTG
Automatic exposure control AEC: support
Automatic white balance AEB: support
Automatic gain control AGC: support
Adjustable parameters: brightness contrast color saturation hue resolution
The gamma exposure contrast gain white balance backlighting
Power supply: USB BUS 4P-2.0mm POWER socket
Working voltage: DC5V
Working current: 140mA~220mA
Working temperature: 0 ~ 60
Storage temperature: -20 ~ 70 C
Board size: 15*15*13mm
Machine weight: 50g
Supported system: WinXP/Vista/Win7/Win8/ Linux with UVC (above linux-2.6.26)/ MAC-OS X 10.4.8 or later
/Wince with UVC/Android 4 or with above UVC
Interface:USB Interface
Interface:USB Interface
Lens: 3.6mm
Angle(FOV): 75°
Line length:2M
8MP Product Description:
Sensor: So ny IMX179
Lens Size: 1/3.2inch
Pixel size: 1.4um
Image area: 6.18mm x 5.85mm
The most effective pixel: 3264(H) X 2448(V) 800MP pixels
Output image format: MJPEG
Supported resolution and frame rate:
3264X2448 @ 15fps / 2592X1944@ 15fps
1920×1080 @ 30fps / 1600X1200@ 30fps
1280X720 @ 30fps / 960X540@ 30fps
640X360 @ 30fps / 848X480@ 30fps
424X240 @ 30fps / 320X180@ 30fps
Signal to noise ratio: 34dB
Dynamic range: 72.5dB
Sensitivity: 0.65V/lux-sec@550nm
Minimum illumination: 0.5lux
Shutter type: Electronic rolling shutter / Frame exposure
Interface type: USB2.0 High Speed
Support free drive protocol: USB Video Class (UVC)
Support OTG protocol: USB2.0 OTG
Automatic exposure control AEC: Support
Automatic white balance AEB: Support
Automatic gain control AGC: support
Button camera: support
Adjustable parameters: brightness, contrast, color saturation, hue, clarity
Lens parameters: with no distortion lens
Power supply mode: USB BUS POWER 4P-2.0mm socket
Working voltage: DC 5V
Working current: 160mA~260mA
Working temperature: -10～70℃
Supported systems:
WinXP/Vista/Win7/Win8
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above with UVC
12MP Product Description:
Sensor: So ny IMX326
Lens Size: 1/3.2inch
Pixel size: 1.4um
Image area: 6.18mm x 5.85mm
The most effective pixel: 3264(H) X 2448(V) 800MP pixels
Output image format: MJPEG
Supported resolution and frame rate:
4000*3000p@30fps
Signal to noise ratio: 34dB
Dynamic range: 72.5dB
Sensitivity: 0.65V/lux-sec@550nm
Minimum illumination: 0.5lux
Shutter type: Electronic rolling shutter / Frame exposure
Interface type: USB2.0 High Speed
Support free drive protocol: USB Video Class (UVC)
Support OTG protocol: USB2.0 OTG
Automatic exposure control AEC: Support
Automatic white balance AEB: Support
Automatic gain control AGC: support
Button camera: support
Adjustable parameters: brightness, contrast, color saturation, hue, clarity
Lens parameters: with no distortion lens
Power supply mode: USB BUS POWER 4P-2.0mm socket
Working voltage: DC 5V
Working current: 160mA~260mA
Working temperature: -10～70℃
Supported systems:
WinXP/Vista/Win7/Win8
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above with UVC
Real case:
Package contents:
1 x Camera
Notice :Dear,all customer ,because cd disk is easy damaged by rude transport and Most
of the Customer ‘s Computer Without CD CD-ROM disk drive,it is hard to copy the files
from the CD Disk! In addation ,the CD Disk Polluting the environment after used !
Software will be sent to your emails or leave message in aliexpress when you paid!pls contact with our SALES team if you need !
To Customers :
Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !
we will replyed you within 24hours!!!
Additional information
| Sensor Size | 12MP TYPE-C, 5MP Module TYPE-C, 5MP Module USB 2.0, 5MP TYPE-C, 5MP USB 2.0, 8MP Module TYPE-C, 8MP Module USB 2.0, 8MP TYPE-C, 8MP USB 2.0 |
|---|---|
| Hign-concerned Chemical | None |
| AI Functions | Motion Detection |
| Power Mode | Mains Electricity |
| Megapixels | 5MP |
| TF Card | None |
| Power Supply | Normal |
| Internal Storage | None |
| Installation | Embedded |
| Color | black |
| is_customized | Yes |
| Audio Output | None |
| Minimum Illumination(Lux) | 0.01lux |
| Viewing Angle | 90° |
| Video Compression Format | MJPEG |
| IR Distance(m) | / |
| Dimensions (L x W x D)(mm) | / |
| Power Supply(V) | DC5 |
| Power Consumption(W) | 3.3-5v |
| Supported Mobile Systems | Android |
| Sensor Brand | Sony |
| Sensor | CCD |
| Model Number | GS-15C5M-AF/GS-15C8M-AF/GS-14MTC12M |
| Supported Operating Systems | Windows 98,Windows XP,Windows Vista,Windows 7,Mac OS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003 |
| Lens (mm) | 3.6mm |
| Connectivity | USB |
| High Definition | 8.0 Megapixels |
| Style | Mini Camera |
| Brand Name | GENIUSPY |
| Origin | Mainland China |
| Certification | None |
| Smart home platform | None |
| Special Features | Vandal-proof |
| Shell Material | Plastic |
| item | Super Mini Usb Camera |
| senor | 1/4″CMOS Progressive Scan 5MP/8mp |
| lux | Color 0.1LuxF1.2; B/W 0.01 LuxF1.2 |
| lens | AUTO Focus lens |
| system | android/windows/Linux/mac etc |
| for | Color 0.1LuxF1.2; B/W 0.01 LuxF1.2 |
| app | USBCAMERA |
| audio | support |
| Resolution | 5mp/8mp |
| Pixel | 2592*1944 30FPS/3264(H) X 2448(V) 800MP pixels |
| keyword | USB Android External Camera |
| SIZE | 15*15 Micro Usb Camera |
| 12MP | camera board size 14*14mm |
